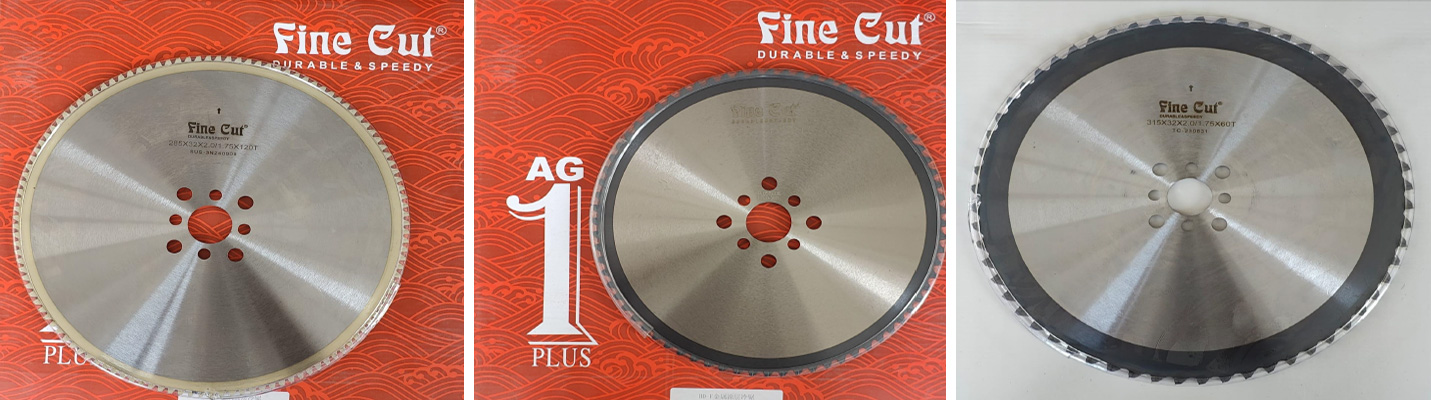

BI-METAL BLADE

Carbide Tipped / CrAIN Coated Circular Saw (Cold Saw)

Specification Details
Blade Diameter Common sizes: 250mm to 420mm
Blade Thickness Typically 1.75mm to 2.7mm
Arbor Hole Diameter Standard: 32mm, 40mm, 50mm
Number of Teeth Ranges from 60 to 120 (depends on application and blade size)
Tooth Type Alternate Top Bevel (ATB), Triple Chip Grind (TCG), Flat Top Grind (FTG), etc.
Material Body: High carbon steel or alloy steel Tips: Tungsten carbide
Cutting Application Non-ferrous metals (aluminum, copper), plastics, steel (with specific grade)
Tooth Pitch Fine (for smooth cut) to Coarse (for faster cut)
Hook Angle Positive for aggressive cutting; Negative for smoother, controlled cuts
Kerf Width Typically 2.0mm to 3.0mm depending on material and application
Max RPM Varies by blade size – example: 6,000–8,500 RPM for 7"–12" blades
