FC-
41-10AG

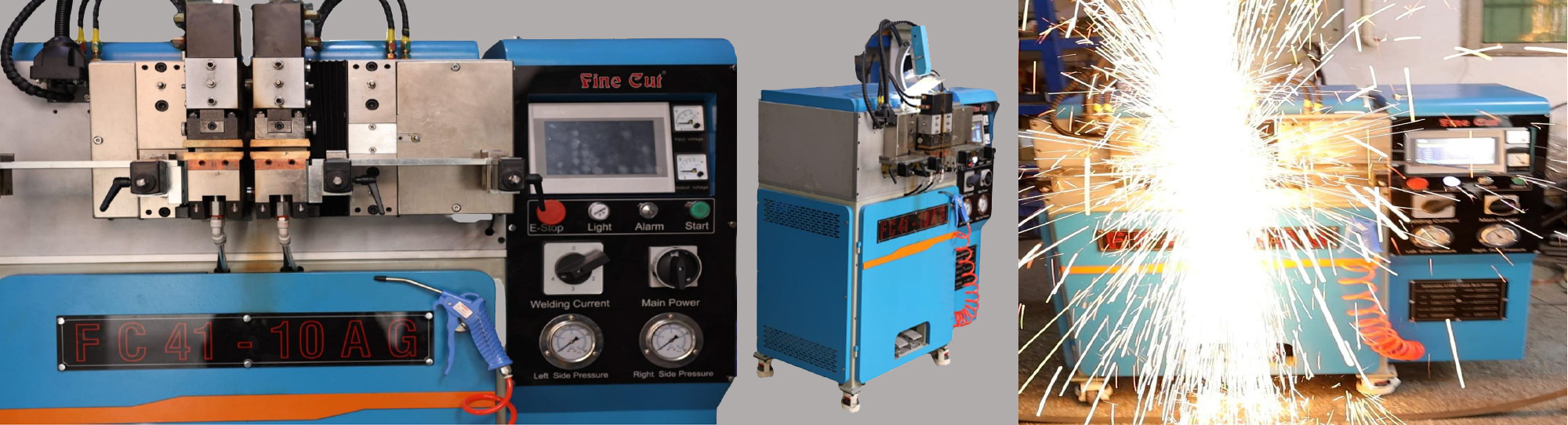

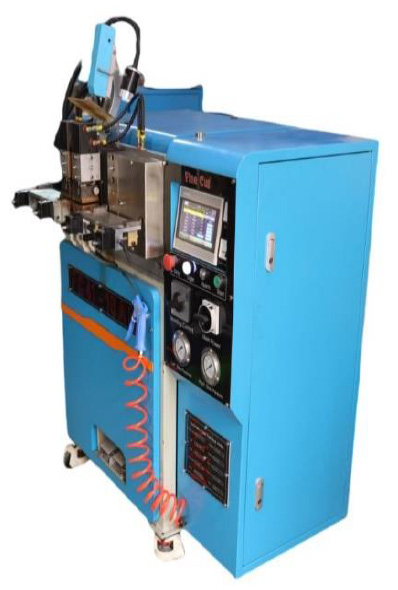

Flash Butt Bimetal Blade Welding Machine


Main Technical Data of 20 KVA Flash Welding Machine

  • Product Model- FC41-10AG
  • Rated Supply Voltage- Three Phase 415 V
  • Rated frequency- 50 HZ
  • Frontal fixed power- 20 KVA
  • Fixed load continuity rate- 30%
  • Insulation Class – A
  • Touch Panel- MCGS
  • Distance Control Setting- Through Wifi
  • Secondary maximum short circuit current – 8000A
  • Secondary no-load voltage - 5.8 V
  • Maximum welding power- 20 KVA
  • Maximum electrode pressure - 20000 N
  • Maximum upset force- 11000N
  • Air supply pressure- 0.5 MPA
  • Cold water flow- 5-7 L / min
  • Flash speed control mode and speed- 0-50 HZ
  • Welding machine weight – 450 Kg
  • Maximum welding width - 41 mm
  • Dimension (width*depth*height) - 1100*900*1500 mm


.
